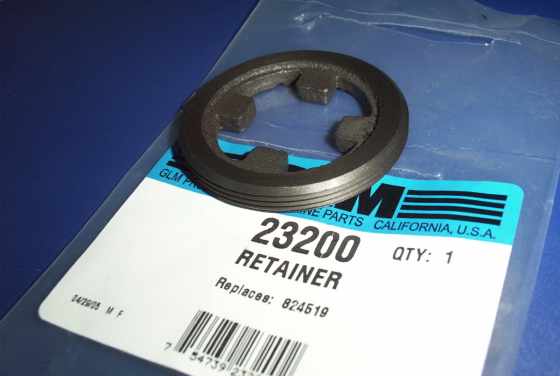

GLM aftermarket parts drive shaft bearing retainer for the Alpha 1 lower gearcase
  • GLM Marine aftermarket retainer drive shaft bearing for the Alpha 1 lower gearcase
  • GLM Number: 23200
  • OEM Number: 824519-1
  • Identified by part number 5 on the lower gearcase drawing page
  • Retainer is used with the tapered roller bearing for the drive shaft
W 23200 Alpha 1 retainer.jpg
23200 Alpha 1 retainer

#23200   $4.89



OEM# 24-30893
