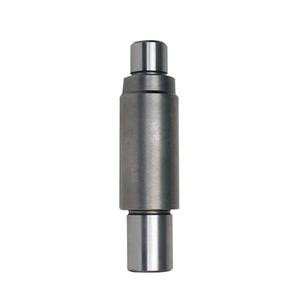

Aftermarket vertical drive shaft for Alpha One stern drive upper gearcase
  • Vertical drive shaft for Alpha One upper drive shaft housing
  • Manufactured by GLM Marine aftermarket parts
  • Replaces original Alpha One upper drive shaft
  • OEM # 45-55796
  • Also works with MC-1/R/MR

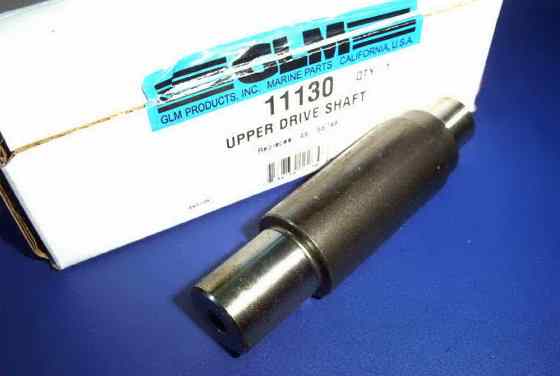

W 11130 Mercruiser upper drive shaft.jpg
11130 Mercruiser Alpha One upper drive shaft

#11130 $75.89
OEM # 45-55796

Please see Alpha One upper gearcase drawing page - part number 6
