GLM aftermarket Alpha 1 outdrive replacement top cover assembly kit with shims and bolts
  • Top cover assembly for Alpha One stern drive years 1984 thru 1992
  • GLM Marine aftermarket part
  • Replaces original Alpha One top cover
  • OEM # 94998A4
  • Comes with shim kit # 23261 and 4 bolts

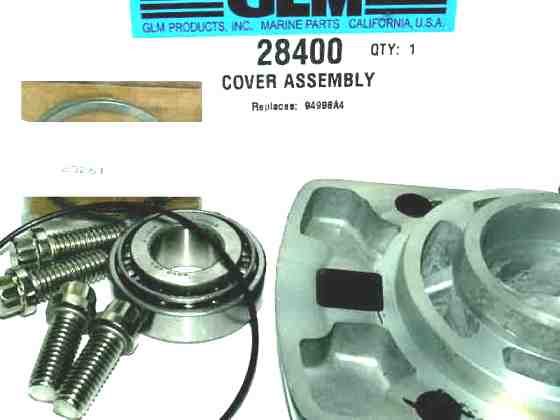

W 28400 Cover bearing assembly.jpg
28400 Cover bearing assembly

#28400   $83.89
OEM # 94998A4


Please see Alpha One upper gearcase drawing page - part number 2
