Mercruiser Alpha 1 or Gen 2 gimbal housing drawing

GLM aftermarket gimbal housing parts and layout drawing

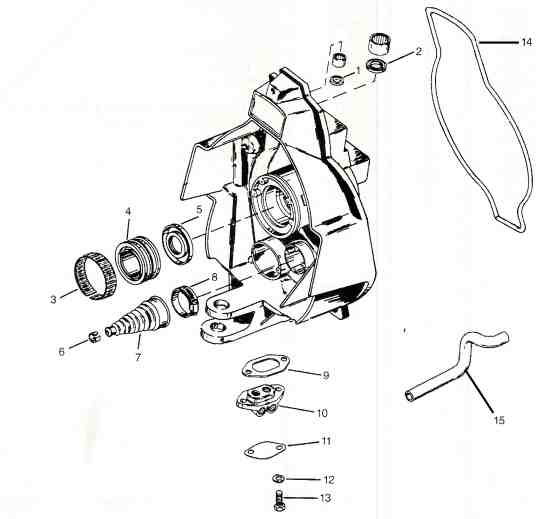

  • GLM aftermarket gimbal housing parts and exploded view
  • Oil seals, tolerance rings and gimbal bearings
  • Clamps, bellow, gaskets and connector
  • Alpha One gimbal bearing

gimbal housing parts

gimbal housing parts


Descriptions
85420 oil seal
85420 oil seal
1
P/N 85420
Oil seal OEM 26-54925 $10.29

85440
85440
2
P/N 85440
Oil seal / 26-32911 $7.29


3
Tolerance ring / 61075
21900
21900
4
P/N 21905
(replaces #21900) Gimbal bearing with tolerance ring. Always install new oil seal when installing new bearing. / 30-60794A4 $44.29

85910
85910
5
PN 85910
Oil seal / 26-88416 $15.29

21790 cable bellow clamp
21790 cable bellow clamp
6
P/N 21790
Cable bellow clamp / 54-38863 $4.29


7
P/N 89080
Bellow / 74639A2 $13.09

21791 clamp
21791 clamp
8
P/N 21791
Clamp / 54-31766 $4.29

32500 gaskets
32500 gaskets
9
P/N 32500
Gasket (5 units) / 27-98823-1 $4.29

21970 trim connector
21970 trim connector
10
P/N 21970
Connector with gaskets and aftermarket Mercruiser parts see picture / 98825A4 $54.29


11
P/N 32160
Gasket / 27-99506-1 $4.29


12
P/N 05009
Lock washer (5 units) / 13-78968
22440 bolt
22440 bolt
13
P/N 22440
Screw / 10-28636 $4.29

86711 transom seal
86711 transom seal
14A
P/N 86711
Transom seal generation 2 (1991 and up), all Bravo and Blackhawks / 43713 $6.29

86712
86712
14B
P/N 86712
Transom seal Mercruiser 1 / MR / Gen 1 (1984 - 1990) / 65533A1 $6.29

47130 water hose
47130 water hose
15
P/N 47130
Water hose all Bravo and Blackhawk / 32-43437 $25.29


15B
P/N 47110
Water hose R/MR/Gen 1/Gen 2 3/4" I.D. / 32-41725-33 $9.29


15C
P/N 47120
Water hose MC-1/R/MR only 5/8" I.D. / 32-32461 $8.29

21961 Bravo transom kit
21961 Bravo transom kit
A
P/N 21961
Mercruiser Bravo transom kit OEM 30-803100T1 $199.29

21950
21950

B
P/N 21950
Transom service kit 1973 to 1990 OEM 30-803097T1 $149.95


C
P/N 21960
(Generation 2) 1991 and up serial #0D469859 and up / 30-803099T1 $159.29

16005 Plug
16005 Plug
D
P/N 16005
Plug kit / 22-88847A1 $16.29
