GLM Marine aftermarket driven gear shimming tool for the Mercruiser Alpha 1 upper drive shaft housing
  • OEM number: 91-60526T
  • GLM number: 90180
  • Driven gear shimming tool for the Mercruiser/Alpha 1/Alpha 1 Generation 2 stern drive
  • Measures the upper driven gear clearance in the upper drive shaft housing
  • See the upper gearcase drawing page for more components and parts

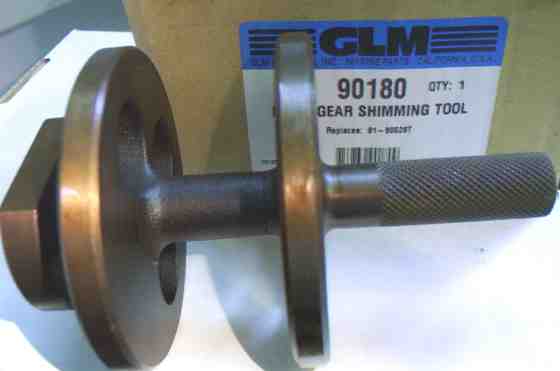

W 90180 drive gear shimming tool.jpg
90180 drive gear shimming tool

  # 90180 Driven gear shimming tool $100.29
