GLM Marine aftermarket Mercruiser Alpha 1 cross pin. This part is used with clutch dog.
  • OEM number 17-30632
  • GLM Marine part number: 21131
  • Cross pin identified as part number 52 on Alpha 1 lower gearcase drawing page

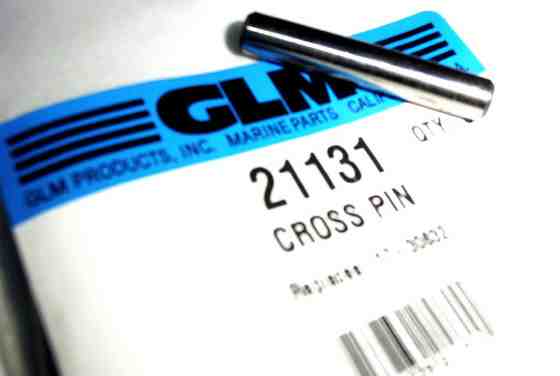

W 21131 Mercruiser Alpha 1 cross pin
21131 Mercruiser Alpha 1 cross pin

  # 21131 Alpha 1 Cross Pin $4.79
