GLM Marine parts Mercruiser Alpha 1 drive shaft bearing retainer wrench
  • OEM number: 91-43506
  • GLM Marine number: 90240
  • Drive shaft bearing retainer wrench used to remove and install the threaded bearing retainer on the Mercruiser, Alpha 1 and Alpha 1 Generation 2 lower unit gearcases
  • For more tools, see our repair tools page

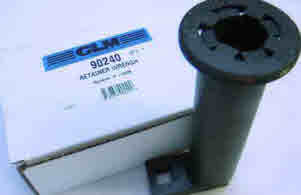

W 90240 Alpha 1 retainer wrench.jpg
90240 Alpha 1 retainer wrench

#90240 Drive shaft bearing retainer wrench $34.29
