Mercruiser parts Alpha 1 bearing carrier puller outdrive tool
  • OEM number : N/A  GLM Marine part number : 90095
  • Adjustable bearing carrier puller can be used with MC-1/R/MR/Alpha 1 models
  • Used with the lower gearcase bearing carrier

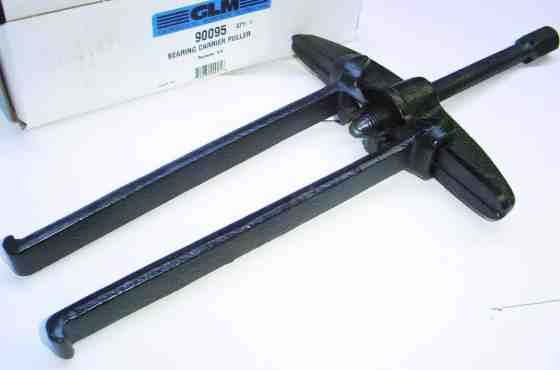

W 90095 Alpha 1 bearing carrier puller.jpg
90095 Alpha 1 bearing carrier puller

  # 90095 Prop and bearing carrier puller $79.29
