Mercruiser Alpha 1 stern drive assembly lock nut for upper-lower gearcase

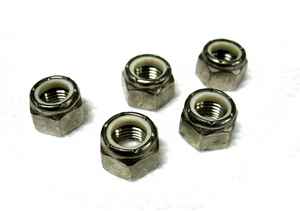

  • 5 pack Mercruiser Alpha 1 lock nuts
  • GLM part #21170 OEM number #11-13439-1
  • Can be used on the bell housing or lower unit

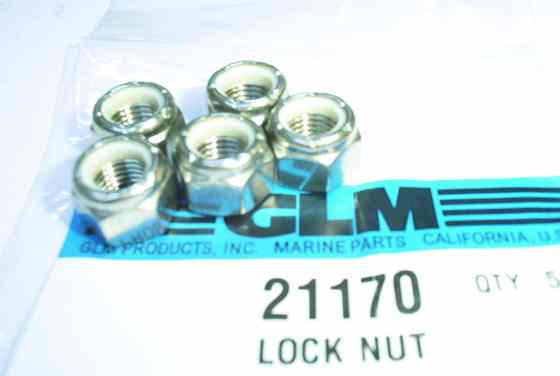

W 21170 Alpha 1 lock nuts.jpg
21170 Alpha 1 lock nuts

21170 nut (5 units) $9.29
