Alpha 1 shift cable anchor
  • GLM Marine number: 21432
  • OEM number: 43436
  • Ref No. 10 on our transom and shift cable drawing page
  • Anchor for Alpha 1 drive years 1984 thru 1992

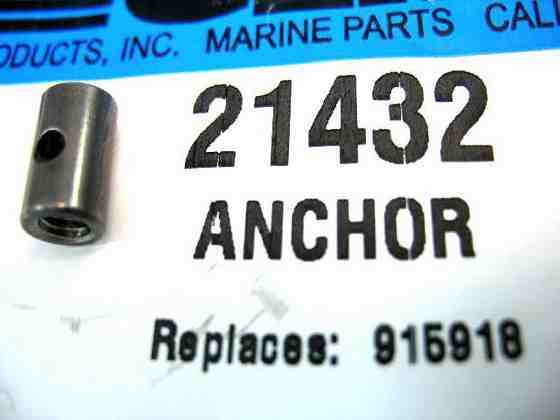

W 21432 Alpha 1 anchor.jpg
21432 Alpha 1 anchor

# 21432 Anchor $4.29
