1972-1977 electric shift seal kit *Video help

GLM aftermarket P/N 87620 lower unit OMC electric shift stern drive seal kit with pinion nut OEM 981797

Kit contents:
  • 33010 Gasket OEM 313368
  • 86050 Swivel bearing retainer oil seal OEM 313353 (2 units)
  • 86040 Swivel bearing retainer top oil seal OEM 310649
  • 22310 Pinion nut OEM 907866
  • 85110 Prop shaft oil seal OEM 310599
  • O ring OEM 314491
  • O ring OEM 322598, 307853 (4 units)
  • 86320 Water tube grommet OEM 310597
  • 86330 Water tube grommet OEM 908594
  • 86340 Water tube grommet OEM 909019

Exploded View Drawings

Search by part number or description here

Please note this seal kit is for the 10 bolt swivel housing but can be used as a substitute for the 8 bolt pattern unit, years 1967 to 1971. Note hole will need to be added where they do not line up with the gasket.

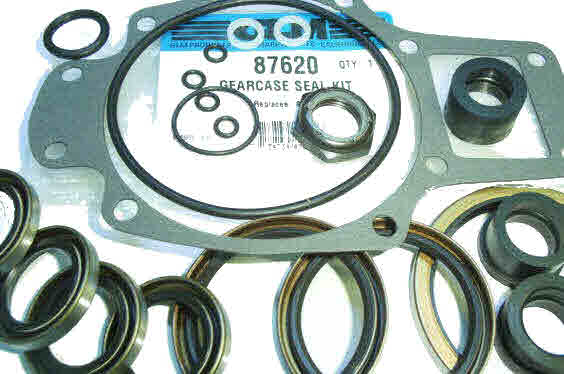

87620 GLM aftermarket OMC electric shift lower seal kit

87620 GLM aftermarket OMC electric shift lower seal kit

P/N 87620 GLM Marine aftermarket OMC sterndrive seal kit years 1972 to 1977 lower gearcase OEM-981797 $38.95

22050 Ball gear kit GLM Marine aftermarket parts
Stringer Ball Gear

P/N 22050 Ball gears for OMC years 1973 to 1986 $199.00

27931 OMC Electric 379628
27931 OMC Electric 379628

P/N 27931 OMC electric shift wire years 1968 to 1977. OEM-379628 $155.95
