Yamaha outboard propeller shaft 40 to 200 hp.

GLM Marine aftermarket lower unit prop shaft 40 to 200 hp. and V6 propellers

40 to 250 hp.

Exploded view lower unit drawings
Search by part number or description here

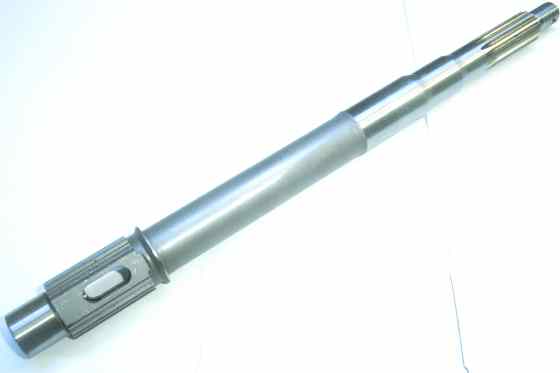

018-22222 propeller shafts

018-22222 propeller shafts

40 to 50 hp. prop shafts

40 hp. 1984 to 1986
40 hp. 1989 to 990
40 hp. 1992 to 1994
C40 hp. 1991 to 993
C40 hp. 1995 to 1997
CV40 hp. 1990
50 hp. 1986 to 994
P50 hp. 1991 to 1994
PRO 50 hp. 1987 to 1990

P/N 018-22470 $297.29 OEM 679-45611-01-00

50 to 90 hp. prop shafts

T50 hp years 1999 to 2000
C60 / C70 hp. years 2000 to 2001
C75 hp. year 1994
E75 hp. year 2000
C85 hp. 1991 to 1994
CV85 hp. year 1990
C90 hp. years 2000 and 2001

P/N 018-23880 OEM 688-45611-00-00 $491.29

115 to 200 hp. prop shafts

115 hp. years 1984 to 2000
115 hp. years 2002 and 2003
C115 hp. year 1991
C115 hp. years 1993 to 2000
F115 / LF115 hp. years 2000 to 2003
S115 hp. years 1996 to 1999
130 hp. years 1984 to 2000
130 hp. years 2002 and 2003
L130 hp. years 1994 to 2000
S130 hp. years 1996 to 1999
150 hp. years 1985 to 1997
175 hp. year 1985
200 hp. years 1984 and 1985
V6 Special 1985 and 1986

P/N 018-23850 OEM 6E5-45611-01-00 $ 499.29
