Yamaha outboard fuel filter *In line and water separating

GLM aftermarket parts with 3/8, 5/16
and 1/4 inch hose barbs

  • Nylon shell housing of the GLM Marine aftermarket Yamaha inline filters are clear, gas particles, gas tank rust and water deposits can be ready viewed. With low cost of filters there is no need to restrict fuel pump or clean out old fuel filter dirt just replace. Best to all ways carry at least one spare filter so you are never restricting fuel intake.
  • In-line style with very good heat, wear and chemical resistance case made of 100 percent nylon by DuPont with high frequency welded top insert.
  • Swiss made element with 1.5 square feet in filtration area to remove dirt and rust particles. Outside case is made of translucent material for determining when unit need to be replaced.
  • 5/16, 3/8 and 1/4 inch hose connections made for outboard motor applications.
  • OMC Evinrude/Johnson outboard in-line fuel filters are also available
  • Exploded view Yamaha outboard lower unit drawings

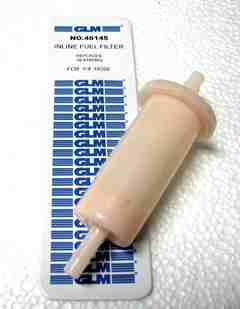

40145 Yamaha OEM 35-816296Q03 1/4 inch-hose
40145 Yamaha OEM 35-816296Q03 1/4 inch-hose

P/N 40145 #35-816296Q03 1/4 inch-hose $4.29

40155
40155

P/N 40155 #35-816296Q2 5/16 inch hose $4.29

40165
40165

P/N 40165 #398319 3/8 inch hose $4.29

40135
40135

P/N 40135 OEM 398319 5/16 inch in barb and 3/8 inch out hose $4.29

40150 Fuel
40150 Fuel

P/N 40150 outboard fuel filter are use with all motors and can be cleaned out or just replaced $9.89

24950 water separator filter

24950 water separator filter

P/N 24950 GLM aftermarket water separator kit with 1/4 inch national pipe thread $33.29

24940
24940

P/N 24940 28 micron water separator fuel filter. Unit is 4-7/16 inch in height and can be used with stainless steel and aluminum brackets. This is used on most 2 and 4 stroke engines. $7.29

24941
24941

P/N 24941 28 micron with 3-3/4 inch height $7.95

24942
24942

P/N 24942 10 micron filter with 4-7/16 inch height $7.29



P/N 018-77810 9.9 to 90 HP.
SX / 61N-24563-00-00 $9.29



P/N 018-77820 V6 with 3.1 liter
61A-24563-00-00 $33.29
