Yamaha outdrive drawings 40, 48, 5O, P5O and 55 hp.

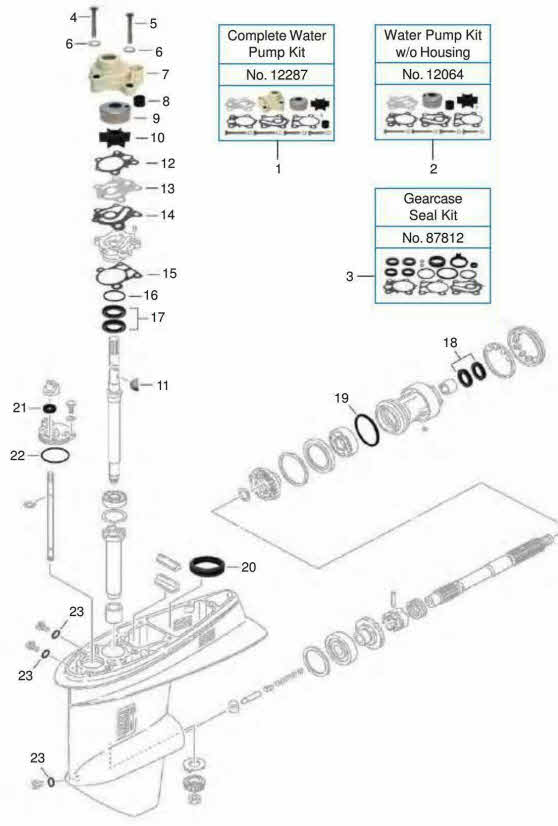

Lower gear-case parts drawing Fits Models: 40 hp. (1984-1994), 48-50 hp. (1986-1994) and P50-55 hp. (1991-1994)

• Included in Kit P/N 12287
+ Included in Kit P/N 12064
- Included in Kit P/N 87812

Yamaha 40-48-50-55 hp.

Yamaha 40-48-50-55 hp.

12287

12287

Item 1

P/N 12287 OEM 6H4-W0078-A0 + 663-44311-02-00 Complete Water Pump Kit

12064

12064

Item 2

P/N 12064 #6H4-W0078-A0 Water pump kit with out housing

GLM 87812

GLM 87812

Item 3

P/N 87812
#OEM 698-W0001-21 Gear-case seal kit





Item 4 • +

P/N 22503 #97095-08055 Bolts (2)



Item 5 • +

P/N 22502 #OEM 97095-08045 Bolt (2)



Item 6 • +

P/N 21720 #92995-08600-00 Washer (4)



Item 7 •

P/N 12446 #663-44311-02-00 Water Pump Housing



Item 8 • +

P/N 12875 #663-44366-00 Damper, Water Seal



Item 9 • +

P/N 12864 #663-44322-00 Pump Cup



Item 10 • +

P/N 89910 #61-13-44352-00-00 Impeller



Item 11 • +

P/N 89599 #90280-03M03-00 Key,woodruff



Item 12 • +

P/N 38106 #663-44315-A0 Gasket, Water Pump



Item 13 • +

P/N 12526 #663-44323-00 Wear Plate



Item 14 • +

P/N 38011 #663-44324-A0 Gasket, Wear Plate



Item 15 • +

P/N 38010 #663-443160-A0 Gasket, Water Pump



Item 16

P/N 84260 #93210-41042 O ring



Item 17

P/N 85228 #93101-23070 Oil Seal



Item 18

P/N 85225 #93101-22067 Oil Seal



Item 19

P/N 84265 #93210-66M98 O ring



Item 20

P/N 38032 #663-45123-00 Gasket, Muffler



Item 21

P/N 85223 #93106-09014 Oil Seal



Item 22

P/N 84255 #93210-49046 O-ring



Item 23

P/N 38015 #90430-08020 Gasket, Drain Fill
