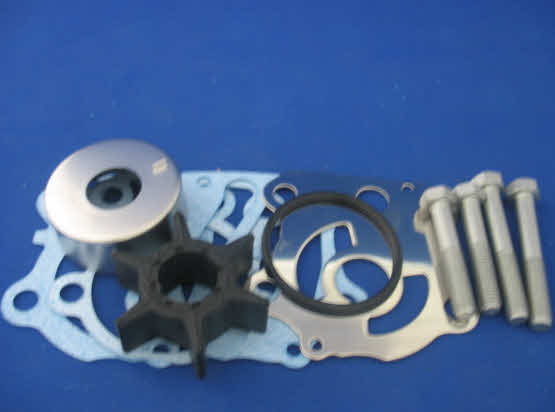

Yamaha outboard water pump kit *50 *60 *70 hp.

Lower unit kit for models: C60, C70, P60, T50, T60, 60 and 70 hp.

Bolts, o ring, seal, cup, wear plate, woodruff key and impeller
  • Fits Models:
  • T-50 hp. years 1997 to 2001, 2003-2005
  • C-60 hp. years 1997 to 2001
  • P-60 hp. years 1997 to 1999
  • T-60 hp. years 2003 to 2005
  • 60 hp. year 2003
  • 70 hp. years 1997 to 2003
  • C-70 hp. years 2000 to 2001

Exploded view Yamaha outboard lower unit drawings
Search by part number or description here

12283 Water pump

12283

OEM 663-W0078-01 663-W0078-A0
P/N 12283 Water pump kit with out housing $28.29



OEM number and parts description

1

89910 Impeller OEM 6H3-13-44352-00

1

12283 Kit without housing OEM 61-13-W0078-02

1

38002 Gasket OEM 688-44316-AO

1

38005 Wear plate gasket OEM 6H3-44324-A0

2

22504 Bolt with washer (2) OEM 90119-08M14-00

1

12447 housing OEM 6H3-44311-02-00

1

38004 gasket OEM 6H3-44315-AQ

1

12514 Wear plate OEM 6H3-44323-00

1

12864 cup OEM 663-44322-00

1
84290 O ring OEM 93210-46044-00
1

89599 Woodruff key OEM 90280-03M03-00
