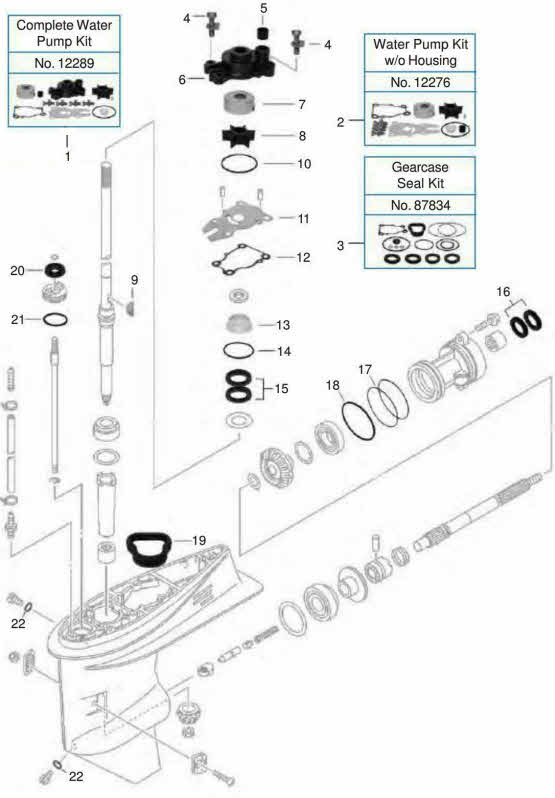

Yamaha drawing 40-50-60 hp. years 1995-2005

Models: C-40 HP. (1998-2002), C-50 HP. (1998-2001), F-40 HP. (1999), F-50 HP. (1996-2005), F-60 HP. (2002) 40 HP. (1998), P-50 HP. (1995-1996), T-50 HP. (2002-2004)
4O HP. (1995-2005) + 50 HP. (1995-1996)

Included in Kit P/N 12289


+ Included in Kit No. 12276
• Included in Kit No. 87834

Yamaha 40-50-60 hp

Yamaha 40-50-60 hp

12289 water pump with housing

12289 water pump with housing

Item 1

P/N 12289 OEM 63D-W0078-01 + 63D-44311-00-00 Complete Water Pump Kit

12276

12276

Item 2

P/N 12276 OEM 63D-W0078-01 Water Pump Kit without housing

GLM 87834 lower gearcase 40-50 hp.

GLM 87834 lower gearcase 40-50 hp.

Item 3

P/N 87834 OEM 63D-W0001-20 Gear-case Seal Kit



Item 4•+

P/N 22429 OEM 90119-08M15 Bolt With Washer (4)



Item 5•+

P/N 12875 OEM 663-44366-00 Damper, Water Seal



Item 6•

P/N 12079 OEM 63D-44311-00-00 Water Pump Housing



Item 4•+ P/N 22429 OEM 90119-08M15 Bolt With Washer(4)
Item 5•+ P/N 12875 OEM 663-44366-00 Damper, Water Seal
Item 6• P/N 12079 OEM 63D-44311-00-00 Water Pump Housing
Item 7•+ P/N 12873 OEM 63D-44322-00 Pump Cup
Item 8•+ P/N 89910 OEM 6H3-44352-00 Impeller
Item 9•+ P/N 89587 OEM 90280-03024 Key, woodruff
Item 10 P/N 84305 OEM 93210-59MG7 O-ring
Item 11•+ P/N 12524 OEM 63D-44323-00 Wear Plate
Item 12•+'P/N 38008 OEM 63D-44316-00 Gasket, Water Pump
Item 13•+P/N 12874 OEM 63D-44312-00 Cover, Pump Housing
Item 14' P/N 84220 OEM 93210-48MG8 O-ring
Item 15' P/N 85224 OEM 93101-25M57 Oil Seal
Item 16' P/N 85225 OEM 93101-22067 Oil Seal
Item 17' P/N 84230 OEM 93210-74775 O-ring
Item 18' P/N 84225 OEM 93210-69MGS O-ring
Item 19' P/N 38018 OEM 63D-45123-00 Gasket, Exhaust
Item 20' P/N 85223 OEM 93106-09014 Oil Seal
Item 21' P/N 84200 OEM 93210-33MG4 O-ring
Item 22' P/N 38015 OEM 90430-08020 Gasket, Drain Fill
