Volvo Penta / Cobra SX OMC Parts Warehouse

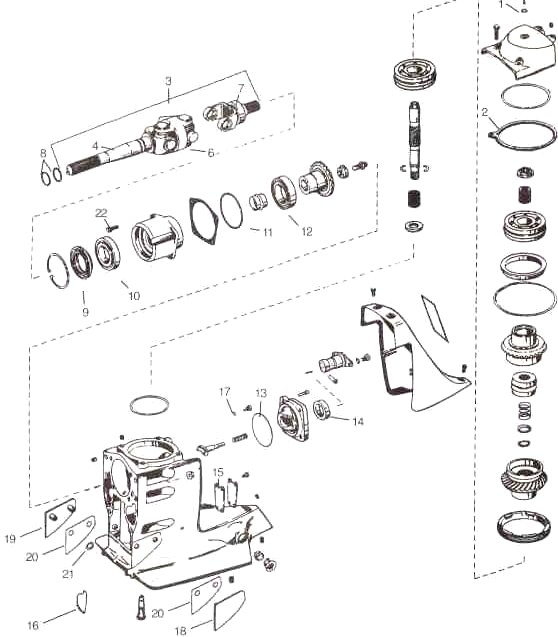

Volvo/OMC Cobra SX OMC parts drawing (upper)

GLM Marine aftermarket Volvo Cobra SX exploded view drawing Yoke drive shaft, bearings, u joints and seals for outdrive upper gear housing

volvo omc cobra sx upper gearcase

28315 cobra sx parts drive shaft	Item 4 P/N 28315 Yoke and drive shaft OEM 912212 $103.95
28030 Outdrive u joint	Item 5 P/N 28030 U joint OEM 915717 $51.99
28100 Socket	Item 6 P/N 28100 Socket (Internal Lock-ring Style) OEM 3850813 $64.95
21583 penta bearing	Item 10 P/N 21583 Bearing OEM 385085 $98.95
	Item 12 P/N 21582 Drive gear bearing OEM 3850852 $113.95
87740 Seal Kit Upper	Items 9, 11, 13, 15 &16 P/N 87740 Seal kit $40.95
12661	Item 18 P/N 12661 Thrust plate $4.95
12662	Item 19 P/N 12662 Thrust Plate $4.95
21773 retainer ring	Item 21 P/N 21773 Retaining ring OEM 3852516 $4.95

Customers who purchased u-joint bellow P/N 89200 also purchased:
U joint bellows	P/N 89200 U joint bellow for the SX/Cobra gimbal housing 1994 - 1998. OEM 3854127 $33.95
21905 OMC Cobra gimbal bearing	P/N 21905 Heavy duty GLM gimbal bearing with tolerance ring replaces OEM 3853807 $53.95
