OMC Cobra upper case without parts 1986-1993

Upper Gear Housing

  • Cobra gear case housing (1986 to 1993)
  • Refurbished OEM or new GLM Marine aftermarket cases available
  • Includes upper seal kit (oil seals, o-rings and gaskets)
  • Painted with with charcoal metallic paint to match original OEM color
  • Does not include any internal components or parts
  • For other upper housing parts, see our gearcase parts drawing page

Exploded View Parts drawings

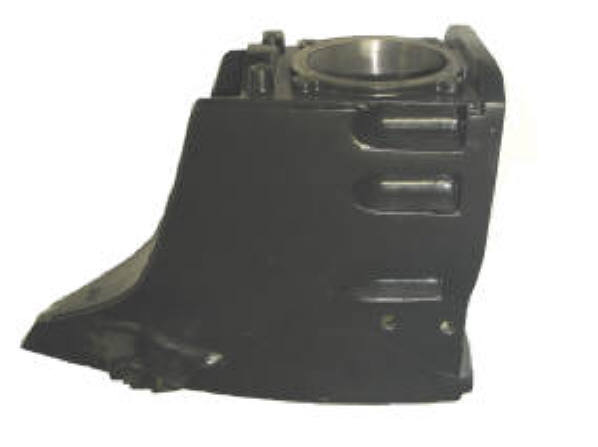

omc upper gearcase

omc upper gearcase

New (shipped from GLM Marine) - $799.29

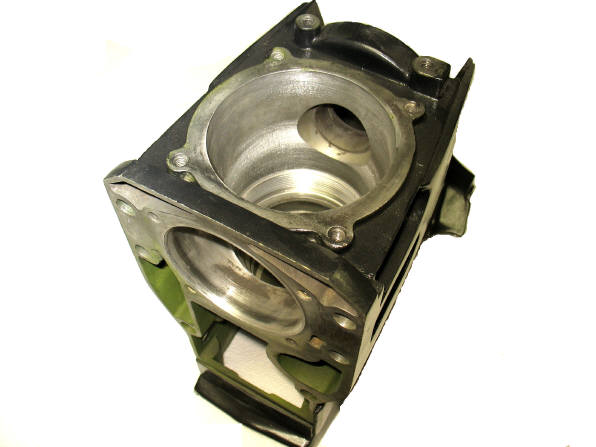

upper case.

upper case

Refurbished - $249.09
