GLM Marine aftermarket Mercruiser parts Lower gearcase drive shaft taper bearing

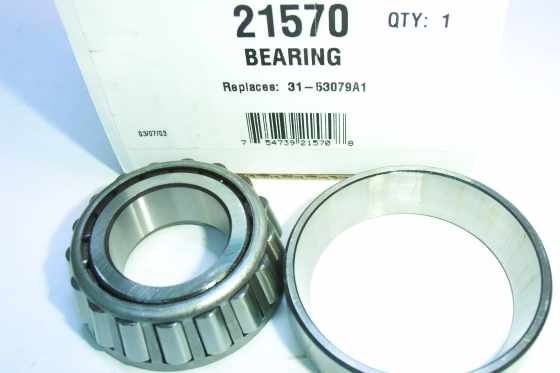

21570 Timken taper bearing inside cone and cup drive shaft bearing OEM # 31-53079A1

# 21570 Timken inside cone 15580 and race Timken outside race 15520 OEM # 31-53079A1 $19.29
