Mercruiser manifolds V6 GM marine engines 1983 up

GLM aftermarket parts. V6 GM marine engines
1983 to present

  • Use with Mercruiser Models: 175 and 205 GM engines years 1983 and up.
  • 229 and 262 CID GM motors
  • The tuned design will reduce turbulence and enhance flow for higher and maximum engine power.

Exploded view Mercruiser stern drive drawings
Search by part number or description here

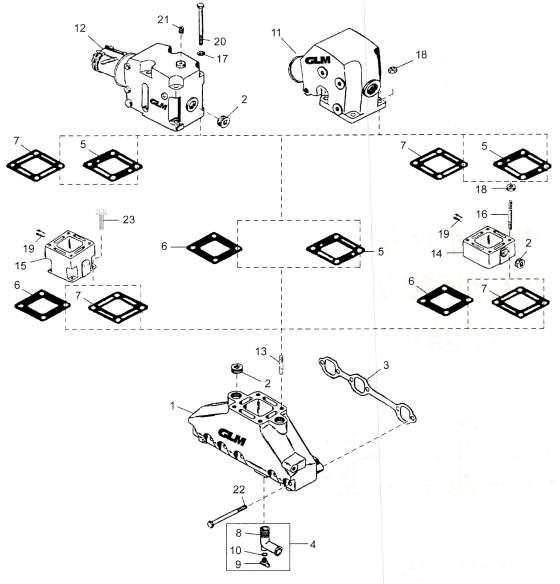

51220 manifold 51140 exhaust elbow 4 inch
51220-51140-elbow 4 inch

GM 229/262 cubic inch with 3" elbows V6 1986 and before

51220 Manifold Exhaust
51220 Manifold Exhaust
Item 1A
P/N 51220
Assembly (iron casting) $308.89

51225
51225
Item 1B
P/N 51225
Assembly Aluminum black $308.89

21892
21892
Item 2a
P/N 21892
/ OEM 22-41622 Plug Steel $4.89

21896
21896
Item 2b
P/N 21896
/ 22- 42861- 1 Plug Brass (2) $7.89

32170
32170
Item 3
P/N 32170
/ 27- 99757 Gasket (2) $11.89

13990 Drain plug
13990 Drain plug

Item 4
P/N 13990 Drain plug for V6 exhaust manifold assemblies. / 22-806926A1 Hose fitting with drain plug kit Contents-Ref. 8,9,10 $8.89

30240
30240
Item 5
P/N 30240
/ 27-863724 Gasket (2) - raw water cooling $16.89

30220
30220
Item 6
P/N 30220
/ 27-860231 Gasket - fresh water cooling (2) $18.89

32080
32080
Item 7
P/N 32080
/ 27-863726 Gasket (2) $14.89

13991
13991
Item 8
P/N 13991
/ 22-86221A01 90 degree hose fitting $8.89

13992
13992
Item 9
P/N 13992
/ 22-806608A1 Drain plug kit contents ref. #10 *5 units $14.89

80140
80140
Item 10
P/N 80140
/ 25-45253 O Ring (5) $4.89

51110 Riser
51110 Riser
Item 11a
P/N 51110
/ 98504A3 Exhaust elbow Iron casting 3" 15 degree $133.89


Item 11b
P/N 51115
Exhaust elbow Aluminum casting 3" 15 degree $221.89

51140 Elbow
51140 Elbow
Item 12B 4" elbows 1986 and after
P/N 51140 / 807988A2 Exhaust elbow Iron casting 4" elbows 1986 and after 7 degree $157.89

51145
51145
Item 12B 4" elbows 1986 and after
P/N 51145 Exhaust elbow Aluminum black 4" 7 degree $225.89


Item 12c
P/N 51146
Exhaust elbow Aluminum platinum 4" 7 degree $222.89

22391
22391
Item 13a
P/N 22391
/ 16-49545 Stud Steel (4) units $7.89

22462
22462
Item 13b
P/N 22462
Stud stainless steel (4) $27.89

50300
50300
Item 14a
P/N 50300
/ 8074776A3 Spacer 3" Iron casting $101.89

50305
50305
Item 14b
P/N 50305
Spacer 3" Aluminum casting $131.89

50600
50600
Item 15a
P/N 50600
/ 807477A2 Spacer 6" Iron casting $111.89


Item 15b
P/N 50605
Spacer 6" Aluminum black $148.89

22481
22481
Item 16a
P/N 22481
/ 16-97520 Stud 3/8 x 5 use with 3" elbow / 3" spacer (4) $19.89

22474
22474
Item 16b
P/N 22474
OEM 16-11375 Stud 3/8 x 9-1/2 use with 4" elbow / 3" spacer (4) $28.89


Item 17
P/N 21494
Lockwasher Stainless steel for aluminum 4.89

21248 lock nuts
21248 lock nuts
Item 18A
P/N 21248
OEM 11-46335 Nut flange serrated nut *5 units $4.89


Item 18B
P/N 21246
Nut stainless steel (2) $4.89

21893
21893
Item 19
P/N 21898
OEM 22-32802-2 Plug $4.89

58222
58222

P/N 58221 Unit without spacer $689.29

58223
58223

P/N 58223 Manifold set with 3 inch spacer $828.89

58225
58225

P/N 58225 Set with 6 inch spacer $864.89

Package for GM 229/262 cubic inch V6 with 4" elbows 1986 and after



P/N 58222 Unit without spacer $723.89

58224
58224

P/N 58224 set with 3 inch spacer $828.89

58226
58226

P/N 58226 Manifold set with 6 inch spacer $864.89
