Mercruiser manifold GM 427 454 482 V8 engine

427 - 454 - 482 years 1968 to 1986 V8 GM large block marine engine

  • Parts with tech drawings
  • V8 GM big block has an extra 30% water cooling area this will help reduce temperature in port exit area for longer gasket life.
  • The tunes design will reduce turbulence and enhance flow for higher and maximum marine engine power.
  • Mercruiser manifold gaskets

Tech support Exploded view drawings
Search by part number or description here

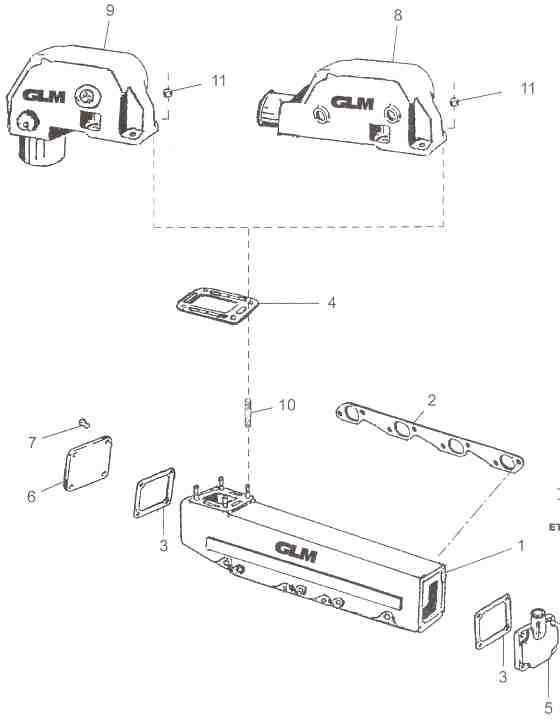

51264 port 51266 starboard GM 427 454 482.

51264 port 51266 starboard GM 427 454 482.

Item 1A
P/N 51264
OEM 47735A17 Exhaust manifold port $419.29

Item 1B
P/N 51266
OEM 47736A17 Exhaust manifold starboard $419.29

Item 2
P/N 33760
OEM 27-46820 Gasket *2 units $23.89

Item 3
P/N 31490
OEM 27-48043-1 Gasket end cap *5 units $9.89

Item 4
P/N 31480
OEM 27-48042 Gasket exhaust elbow *2 units $4.89

Item 5
P/N 51010
OEM 60252A2 End cap $27.89

Item 6
P/N 51030
OEM 73813A1 End cap $25.89

Item 7
P/N 22449
OEM 10-35386 Screw *8 units $9.89

Item 8
P/N 51196
OEM 72963A9 Exhaust elbow Not available yet $162.96

Item 9
P/N 51194
OEM 76668A3 Exhaust elbow Not available yet $179.96

Item 10
P/N 22391
OEM 16-49545 Stud *4 units $8.89

Item 11
P/N 21248
OEM 11-49838 Flange serrated nut *5 units $4.89
