Mercruiser help guide with carburetor kit and float cross reference model number and part number.

  • Cylinder
  • Year
  • Serial number
  • Original carb number
  • Mfg. model number and carb kit
  • T.C.Electronics / Marine Aftermarket Mercruiser Help Line 416 751-7326
Please see Mercruiser help guide for your carb kit

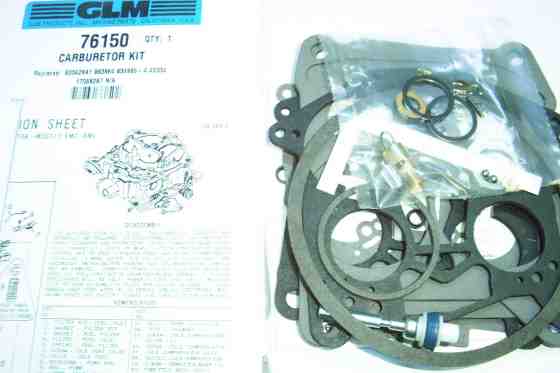

W 76150 Mercruiser carburetor kit.jpg
# 76150 Mercruiser carburetor kit

Model
Cyl.
Year
Serial number range
Original carburetor
Mfg. number code or model
Carb. repair kit
Float
120
4

1972-1973
3377341-3770649
1351-4263A3
7041369 R2/2GC
76068
77200
120
4

1974-1975
3770650-4469865
1351-5202A1
7043182 R2/2GC
76068
77200
120
4

1976-1978
4469866-5192048
1351-6065A2
7044182 R2/2GC
76068
77200
120
4

1979-1982
5192049-6229717
1351-7354A1
17059054 R2/2GC
76068
77200
120/2.5L
4

1983-1989
6229718-0C853255
1351-8480A2
17081060-R2/2GC
76068
-
120/2.5L
4

1983-1989
6229718-0C853255
1389-8490A2
M2/MERCARB
76086
77230
120/2.5L
4

1983-1989

6229718-0C853255
1389-9350A2
M2/MERCARB
76086
77230
120/2.5L
4

1983-1989

6229718-0C853255
1389-9562A1
M2/MERCARB
76086
77230
140
4

1968-1969
2508261-2816416
1351-3635A1
7036646-R/2GC
76068
77200
140
4

1970
2816417-2911439
1351-4032A1
7040080-R/2GC
76068
77200
140
4

1970-1973
2911440-3771644
1351-4293A1
7040084-R/2GC
76068
77200
140
4

1974-1978
3771645-5157668
1351-5203A1
7043184-R/2GC
76068
77200
140
4

1979-1982
5157669-6229717
1351-7355A1
17059052-R/2GC
76068
77200
140/3.0L
4

1983-1989
6229718-0C856556
1351-8480A2
17081060-R/2GC
76068
-
140/3.0L
4

1983-1989
6229718-0C856556
