3 cylinder power head gasket set
GLM aftermarket Johnson / Evinrude outboard part #39350 complete gasket set with detailed parts photo
  • Powerhead gasket set OEM # 390087
  • Aftermarket GLM # 39350
  • Use with 3 cylinder powerheads
  • 60 hp for years 1986 - 1988
  • For 65 hp use # 33400 head gasket plus P/N 1972 - 1973
  • 65 hp for years 1984 - 1986
  • 70 hp for years 1974 - 1985
  • Head gasket is not included

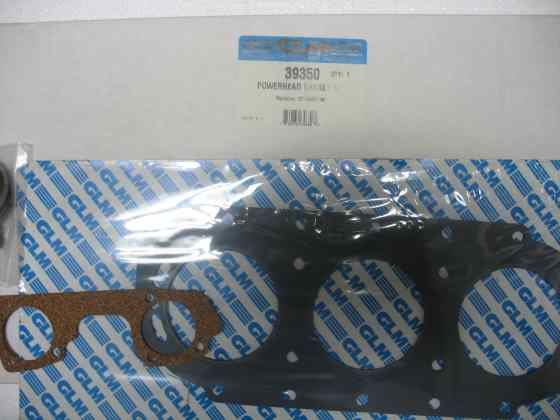

39350 gasket.jpg
Powerhead gasket set for Johnson / Evinrude outboards

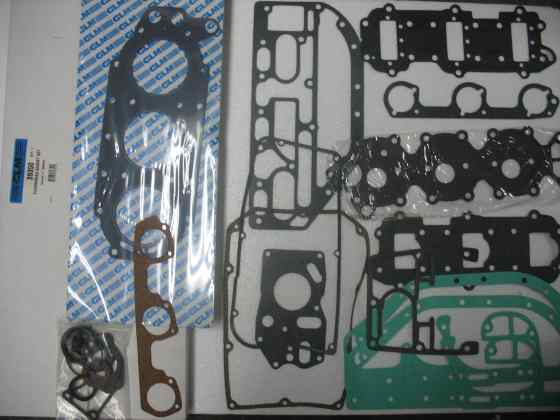

W 39350 Gasket set .jpg
GLM #39350 Johnson / Evinrude powerhead gasket set

#39350 Powerhead gasket set $75.89
