Johnson outboard parts *Thermostat kits

GLM Marine aftermarket thermostat kits

  • Thermostats to be used with Johnson / Evinrude outboards 9.9 to 240 hp.
  • Rebuilt kit with o rings, gaskets, spring and t-stat cover
  • 2 Cylinder 25 and 35 hp. thermostat assembly years 1996 to 2001
  • 2-3 Cylinder and V4 loopcharged powerhead thermostat assembly years 1992 to 2000
  • V4 and V6 crossflow powerhead thermostat assembly

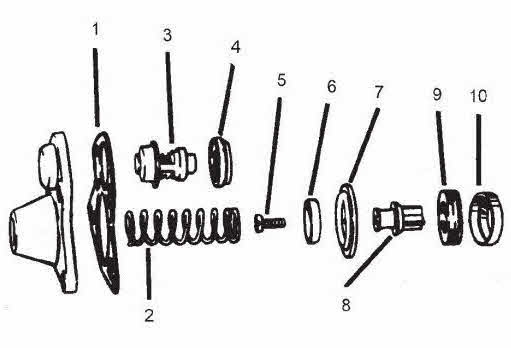

  • Thermostat assembly drawings for loopcharged and crossflow see bottom of page.

V6 thermostat

V6 thermostat

13010 Johnson OEM 434841, 5005440
13010 Johnson OEM 434841, 5005440
P/N 13010 Thermostat #434841, 5005440, 6 to 55 hp. and V4/V6 Crossflow $10.89

13080
13080
P/N 13080 Johnson Thermostats, #396987 143 degree, 3 cylinder 1985 and before $20.89

13130 Evinrude Outboard
13130 Evinrude Outboard
P/N 13130 Thermostat 435491
60 degree V4 90 - 115 hp. years 1995 up
60 degree V6 150 - 175 hp. years 1991 up
$18.89

13150  9.9 -15 hp.
13150 9.9 -15 hp.
P/N 13150 Thermostat 3 cylinder V4, 436195 143 degree
9.9, 15, 40, 48 and 50 hp. powerheads $8.89

13170
13170
P/N 13170 Thermostat 434137
143 degree 3 cylinder years 1986 to 1991
V4 Loopcharged V8 $21.89

13260
13260
P/N 13260 Thermostat kit for 133 degree for V6 Offshore models
Kit contains
P/N 13730 332944 T-stat cover
P/N 81250 331188 O-ring
P/N 11058 337067 Spring
P/N 13110 437090 Thermostat
P/N 33070 339044 Gasket
P/N 13251 343105 Sleeve $22.89

13270
13270
P/N 13270 Thermostat Rebuilt Kit
143 degree for V4 Crossflow
Kit contains
2 # 13010 434841 Thermostat
2 # 46170 318395 Valve
2 # 46150 317245 Spring
2 # 86481 321692 Grommet
2 # 33650 332369 Gasket
2 # 34440 321932 Gasket $26.89

13280
P/N 13280 Thermostat Rebuilt Kit
143 degree for V6 Crossflow
Kit contains
# 13010 434841 Thermostat
# 30610 310058 Seal
# 33600 321184 Gasket
# 46150 317245 Spring
# 46100 320880 Valve seat
# 46120 321222 Valve cap
# 46140 321221 Valve diaphragm
# 46160 321220 Spring retainer
# 46180 321027 Valve $26.89

13290
13290
P/N 13290 143 degree for 60 degree V4/V6
Kit contains
# 13720 338682 T-Stat cover
# 81250 331188 O-Ring
# 11058 337067 Spring
# 13130 435491 Thermostat
# 13251 343105 Sleeve $25.89

13350
13350
P/N 13350 For 6 hp. to 55 hp. 90 degree V4, 90 degree V6 Kit contains 13010 #434841, Thermostat 30610 #310058 Gasket $14.89

13450
13450
P/N 13450 for 3 cylinder Kit contains 13080 #396987 Thermostat,34630 #332108 Gasket $17.89

13330
13330
P/N 13330 for 3 cylinder 60 degree V4,V6, Kit contains 13720 #338632 T-stat cover 81250, #331188, O ring 11058 #337067, Spring 13130 #435491 Thermostat $25.89

13310
13310
P/N 13310 for 90 degree V6 Offshore models
Kit contains
# 13730 332944 T-stat cover
# 81250 331188 O-ring
# 11058 337067 Spring
# 13110 437090 Thermostat
# 33070 339044 Gasket $19.89

13180 90 degree V6 200-250 hp
13180 90 degree V6 200-250 hp

P/N 13180 for 90 degree V6 200 and 250 hp.
Higher flow 133 Degree #5001036 $ 19.89

13190
13190

P/N 13190 for 65, 85, 100, 115 and 135 hp.
Years 1971 to 1990, Higher flow 143 Degree #394411 $19.89

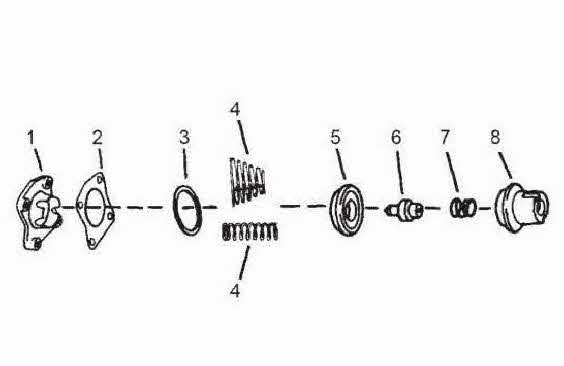

Loopcharged assembly drawing
