OMC parts & OMC Stringer upper gearcase drawing

OMC Parts / OMC Cobra Stern Drive Tech Drawings

OMC parts & 800 Stringer upper gearcase drawing

OMC Stern Drive Parts exploded drawing

400 / 800 series Stringer upper gearcase

Drawing 1973 to 1986 Low Profile OMC Stern Drive

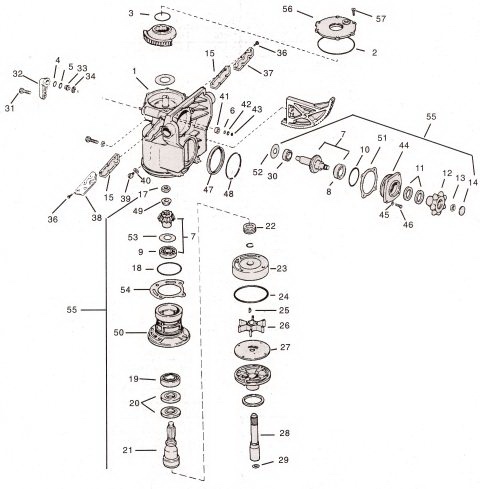

800 / 400 / Stringer / OMC Stern Drive Parts Drawing Upper Gearcase

OMC parts photo

Item #

OMC parts description

# 27000 Upper gearcase assy.

# 1

# 27000 Empty upper gearcase assy. OEM # 982226 $1123.79

# 22510 Gear set

# 7

# 22510 Gear set 5.7L V8 OEM # 982261 $735.79

# 22512 Gear set

# 7

# 22512 Gear set 5.0L V8 OEM # 982259 $779.79

# 22530 Gear set 21/20 gear ratio

# 7

# 22530 Gear set 3.8L V6 OEM # 982835 $715.79

OEM 984262 4.3L. V-6 or 165 hp. in line 6 Cylinder

# 22514 Gear set 21/19 gear ratio

# 7

# 22514 Gear set 4.3. V6 or 165 hp. in line 6 cylinder engines
OEM # 984262 $745.79

T 22050 ball gear kit omc parts.jpg

# 22050 ball gear kit

# 8

# 22050 Ball gear kit $198.79

# 21544 Bearing

# 8

# 21544 Bearing OEM # 382212 $41.79

# 21545 Bearing

# 9

# 21545 Bearing OEM # 379585 $73.79

# 22020 Ball gear

# 12

# 22020 Ball gear OEM # 908069 $141.79

# 87650 Seal kit OEM #982949 with nuts

1973 thru 1986 for ball gears with nut holding it

# 87650 Upper 1973-1986 seal kit aftermarket omc parts

# 87651 Seal kit OEM # 981799 1968 thru 1972
with press on ball gears $44.79

Years 1968 thru 1972 with press on ball gear

# 87651 Upper gearcase 1968-1972 seal kit 100 thru 245 h.p.

3-6

10

11

13-18

20

22

24

29

42

Included in OMC seal kits
3 O-ring
3 electric shift # 82250
4 O-ring # 82250
4 O-ring 82140
5 Quad ring # 42140
6 Quad ring # 41120
10 O-ring # 82350

11 Oil seal # 86080

13 Nut # 22330

14 Cover # 22030

15 Gasket # 34180

16 Gasket # 33050

17 Lock nut $12 Value # 22310

18 O-ring # 82360

20 Oil seal # 86090

22 Shaft seal # 86100
24 O-ring # 82520
29 O-ring # 80220

# 87650 Seal kit OEM #982949 $52.79

# 87651 Seal kit OEM #981799 1968 thru 1972
with press on ball gears $44.79

21546 bearing

# 19

# 21546 Bearing OEM # 382165 $17.79

# 22412 Upper drive shaft low profile

# 21

# 22412 Drive shaft OEM # 909121 $157.79

# 22422 Upper drive shaft high profile

# 21

# 22422 Drive shaft (High profile) OEM # 981220 $339.79

# 22423 Upper drive shaft high profile 4 cyl.

# 21

# 22423 Drive shaft (High profile) OEM # 382883 $278.79

T 12390 GLM Marine aftermarket housing.jpg

12390 GLM Marine aftermarket housing

# 23

# 12390 Pump housing $45.79 OEM # 983298

# 89595 Key

# 25

# 89595 Key $6.79 OEM # 308928

# 89760 Impeller

# 26

# 89760 Impeller $25.79 OEM # 379475

T 12590 pump plate.jpg

12590 pump plate

# 27

# 12590 Wear plate $15.79 OEM # 313176

# 22410 Short water pump shaft

# 28

# 22410 Pump drive shaft $130.79 OEM # 909753

# 22411 Water pump shaft high profile

# 28

# 22411 Pump drive shaft (Long) $181.79 OEM # 908087

12190 Water pump kit

# 28

# 12190 Water pump kit $77.79 OEM # 983218

# 21547 Bearing

# 30

# 21547 Bearing $33.79 OEM # 375761

# 31

# 22329 Screw $4.79 OEM # 305282

# 27970 Bracket

# 32

# 27970 Bracket $88.79 OEM # 908870

# 27990 Retainer

# 33

# 27990 Retainer $30.79 OEM # 908871

# 37

# 28440 Water cover (Port) $21.79 OEM # 308699

# 38

# 28450 Water cover (Stbd.) $16.79 OEM # 308591

# 21731 Draining screw (magnetic)

# 39

# 21731 Draining screw (magnetic) $5.79 OEM # 318544

# 27820 Steering bushing

# 41

# 27820 Bushing $10.79 OEM # 308883

# 27830 Retainer ring

# 43

# 27830 Retaining ring $4.79 OEM # 911317

# 27960 Bearing retainer

# 44

# 27960 Bearing retainer $81.79 OEM # 313184

# 46

# 22327 Screw $4.79 OEM # 909386

# 86652 & # 11056 Seal & spring

# 47 & 48

# 86652 & 11056 Seal & spring $10.79 OEM # 308768 308590

# 22515 Centering cone

# 49

# 22515 Centering cone $20.79 OEM # 909123

# 27950 Bearing housing

# 50

# 27950 Bearing housing $124.79 OEM # 910240

# 23310 Shim kit 5 sizes

# 51

# 23310 Shim kit 5 sizes $11.79 OEM # N/A

# 23320 Shim kit 6 sizes

# 52

# 23320 Shim kit 6 sizes $10.79 OEM # N/A

# 23330 Shim kit 8 sizes

# 53

# 23330 Shim kit 8 sizes $16.79 OEM # N/A

# 55

# 22570 Bearing retainer assy. 3.8L $1,643.79 OEM # 982738

# 27860 Gearcase top

# 56

# 27860 Cover $80.79 OEM # 313228

# 22307 Screw

# 57

# 22307 Screw $4.79 OEM # 909638

# 87650 Seal Kit Parts *

1 Upper gearcase # 27000

2 O-ring # 82480

3 O-ring electric shift # 82250

4 O-ring # 82250

4 O-ring # 82140

5 Quad ring # 42140

6 Quad ring # 41120

7 Gear set 5.7 liter V-8 # 22510

7 Gear set 5 liter V- 8 # 22512

7 Gear set 3.8 liter V- 6 # 22530

8 Ball gear kit # 22050

8 Bearing # 21544

9 Bearing # 21545

10 O-ring # 82350

11 Oil seal # 86080

12 Ball gear # 22020

13 Nut # 22330

14 Cover # 22030

15 Gasket # 34180

16 Gasket # 33050

17 Lock $12 Value # 22310

18 O-ring # 82360

19 Bearing # 21546

20 Oil seal # 86090

21 Drive shaft # 22412

21 Shaft high profile #22422

21 Shaft high profile #22423

22 Shaft seal # 86100

23 Pump housing # 12390

24 O-ring # 82520

25 Key # 89595

26 Impeller plate # 89760

27 Pump plate # 12590

28 Water pump shaft short # 22410

28 Water pump shaft long # 22411

29 O-ring # 80220

30 Bearing # 21547

31 Screw # 22329

32 Bracket # 27970

33 Retainer # 27990

34 Retainer ring # 27840

35 Spacer Shaft # 27980

36 Screw # 22328

37 Water cover port # 28440

38 Water cover std. # 28450

39 Screw # 21731

40 Gasket # 31171

41 Bushing # 27820

42 Gasket # 31173

43 Retaining ring # 27830

44 Bearing Retainer # 27960

45 Lock washer # 21492

46 Screw # 22327

47 Seal # 86652

48 Spring # 11056

49 Centering cone # 22515

50 Bearing housing # 27950

51 Shim kit 5 sizes # 23310

55 Bearing retainer # 22570
