OMC King Cobra Parts *New and used P/N 1 to 40

OMC King Cobra parts and drawing

  • Please note: the true King Cobra lower unit should only be used for the 7.4L (454) and 7.5 liter (460) motors.
  • For the 5.7 liter (350) and 5.8 liter (351) motors, use the standard OMC Cobra lower unit gear-case parts.
  • Used parts that may not be listed here are the lower gear case, gears, clutch dog and propeller shafts.
  • Please contact order desk for availability.

King Cobra used parts

King Cobra used parts

87656 OMC Cobra lower unit gasket seal kit V6-V8

87656 OMC Cobra lower unit gasket seal kit V6-V8

Item A

P/N 87656 Click on photo for parts included list. Compatible with lower unit 3.0 liter years 1990, 1991, 1992 and 1993. V6 and V8 all years OEM 439967 $67.89

contains:
Gasket / 911878
Seal / 911705
Wiper / 912157
Gasket / 915719
O ring / 318717 (3 units)
O ring / 314728
O ring / 305123 (2 units)
O ring 1/4 inch (4 units)
Oil seals / 320862 (2 units) 1986-1990
Oil seals / 334950 (2 units) 1991-1993
Bolts 1/4 28 x 1 inch 4 units
Gaskets / 311598

New and used with lower unit stern drive with exploded view King Cobra component breakdown diagram

12092 Aftermarket water pump kit

12092 Aftermarket omc cobra water pump kit

Item B

Click below link for OMC Cobra water pump removal or installation photos




Photo of OMC Cobra water pump removal page

Cobra water pump installation help

Includes:
P/N 86630 / 911704 O ring type outside seal area
P/N 12391 / 911844 liner
P/N 89950 / 777128 Impeller
P/N 12760 / 911703 Wear plate
P/N 34770 / 911702 Gasket
P/N 12405 / 984744 housing Please see the OMC Cobra installation video before installing kit.

$44.95



Item 1C

Complete rebuilt lower outdrive. Compatible with 1987-1989, 7.5L Ford 460 King Cobra lower units with clutch dog (does not work with cone clutch models). Replaces 435822. $1995.95 plus core deposit

*Call for availability

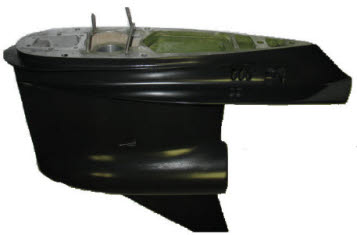

gear case

king cobra gear case

Item 1
Lower unit case only

#22-444 OMC King Cobra used 460 empty gear housing $750.00 *Call for availability

 Pinion bearing

Pinion bearing

Item 2
0391471 Pinion bearing



Item 3
03342852 Set screw and seal

Seal

Seal

Item 4
0332584 Seal



Item 5
Water intake screen - stbd



Item 6
0333234 Water intake screen - port



Item 7
0123273 Screw - intake screen



Item 8
0911714 Stud - water passage

Screw housing to gearcase

Item 9
0316534 Screw - housing to gearcase

 Detent ball

Detent ball

Item 10
0160084 Detent ball

Shifter detent

Shifter detent

Item 11
326807 Shifter detent $40.00

Detent spring

Detent spring

Item 12
0911962 Detent spring

Shifter cradle

Shifter cradle

Item 13
0334163 Shifter cradle

 Lever

Lever

Item 14
0322938 Lever

 Shifter shaft

Shifter shaft

Item 15
0326823 Shifter shaft

Pin shift lever

Pin shift lever

Item 16
0317274 Pin - shift lever

22414 propeller shaft

22414 propeller shaft

Item 18-A
P/N 22414
Propeller shaft 395209 1- 3/16 inch shaft $374.95

22417 newer replacement 1.250 inch bearing carrier

22417 newer replacement 1.250 inch bearing carrier

Item 18-B
P/N 22417
Propeller shaft OEM 5004765 1- 1/4 inch shaft $312.95

OEM-0314728 O ring

OEM-0314728 O ring

Item 21
0314728 O-ring

OEM 0332091 Retainer bearing housing

OEM 0332091 Retainer bearing housing

Item 22
0332091 Retainer - bearing housing

OEM 0912388 Gasket

OEM 0912388 Gasket

Item 23
0912388 Gasket

Bearing housing seal assembly

Bearing housing seal assembly

Item 24
0397918 Bearing housing seal assembly



Item 25
0382408 Needle bearing



Item 26
0387247 Needle bearing

OEM 0320862 Seal

OEM 0320862 Seal

Item 27
0320862 Seal

OEM 0913432 Screw

OEM 0913432 Screw

Item 28
0913432 Screw



Item 29
0301250 Washer

OEM 0314731 Thrust washer reverse gear

OEM 0314731 Thrust washer reverse gear

Item 30
0314731 Thrust washer - reverse gear

OEM 0314730 Pinion nut

OEM 0314730 Pinion nut

Item 31
0314730 Pinion nut

OEM 0397750 Forward pinion gear set
OEM 0397750 Forward pinion gear set
OEM 0397750 Forward pinion gear set
OEM 0397750 Forward pinion gear set

Item 32
0397750 Forward/pinion gear set $799.95 (excellent used sets - call for availability). New set $1099.95.

OEM 0330853 Reverse gear

OEM 0330853 Reverse gear

Item 33
0330853 Reverse gear

OEM Thrust bearing washer

OEM Thrust bearing washer

Item 34
Thrust washer


Item 35
0912387 Drive shaft
Note OMC King Cobra drive shaft are hard to get used or new, we have been using modified Johnson 300 horse power outboard drive shaft in its place.
*Call for availability
OEM Thrust bearing

OEM Thrust bearing

Item 37
Thrust bearing - pinion

OEM 0334516 Clutch dog

OEM 0334516 Clutch dog

Item 38
0334516 Clutch dog

OEM 0313448 Pin

OEM 0313448 Pin

Item 39
0313448 Pin

OEM 0324369 Spring for clutch dog

OEM 0324369 Spring for clutch dog

Item 40
0324369 Spring - clutch dog
