Stringer electric shift switch

OMC stringer electric shift switch

OMC shifter switch with wire 1
OMC shifter switch with wire picture 1

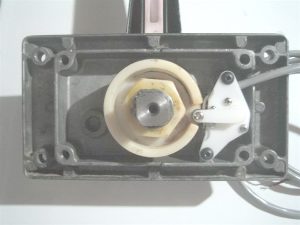

OMC electric shift switch instalation
OMC electric shift switch instalation 4
L OMC electric shift switch instalation 3.jpg
OMC electric shift switch instalation 3
L OMC electric shift switch instalation 2.jpg
OMC electric shift switch instalation 2

# 77222 OMC Stinger electric shift switch years 1970 thru 1978 shifters $195.98

OMC electric gear shift switch # 1
L OMC electric gear shift switch 2.jpg
OMC electric gear shift switch 2
L OMC electric gear shift switch 4.jpg
OMC electric gear shift switch 4
L OMC electric gear shift switch 5.jpg
OMC electric gear shift switch 5

Delphi Connector

(Model #2977422 Female)

Connector from original switch (original switch side harness)

Purple

Green

Blue

4

5

6

1

2

3

White 1

White 2





Purple



Green

Blue

1

2

3

4



Original chassis connections

White 1

Positive (+12V)

Purple

Ignition Switch Positive (+12V)

Green

Forward coil (forward)

White 2

Starter solenoid (Neutral)

Blue

Reverse coil

 Note: White 2 and Purple are connected internally inside the original switch. For 3 wire connectors disregard White 1 and White 2.

Replacement Switch Pin-Out

Red

Positive (+12V)

White

Starter solenoid (neutral)

Green

Forward coil (forward)

Black

Reverse coil (reverse)



Replacement switch wiring

Connect Red to Purple and White 2

Connect White to White 1

Connect Green to Green

Connect Black to Blue



OMC stringer electric shift replacement switch tech infomation 416 751-7326
