GLM Marine aftermarket Mercruiser Alpha 1 stern drive cover screw for upper gearcase
  • OEM number 27-55810-1
  • GLM Marine number 31150
  • Alpha 1 gasket # 34 in illustrated photo
  • If more service help is required, contact tech service for help troubleshooting your stern drive at (416) 751-7326

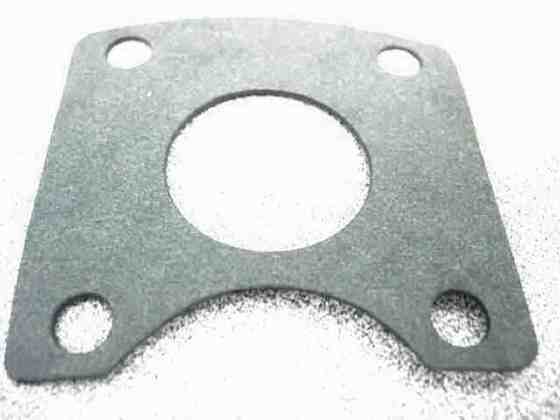

W 31150 Alpha 1 gasket.jpg
31150 Alpha 1 gasket

   31150 Gasket $4.89
