GLM Marine aftermarket Alpha 1 washer transom plate and shift cable exploded parts drawing
  • GLM Marine number: 32600
  • OEM number: 12-815472
  • Ref No. 16 on our transom and shift cable drawing page
  • For Alpha 1 drive years 1984 thru 1992
  • Washer (gasket 5 units)

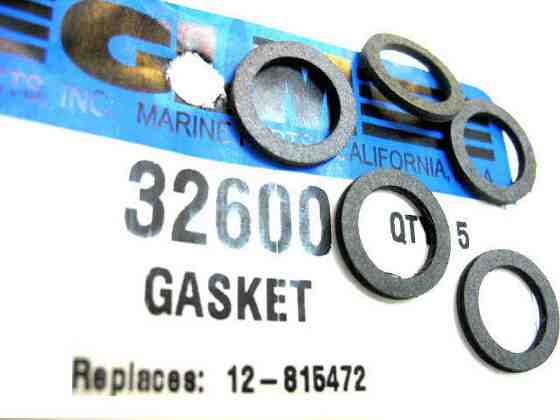

W 32600 Alpha 1 gasket.jpg
32600 Alpha 1 gasket

# 32600 Washer (gasket) 5 units $7.29
