GLM Marine aftermarket Alpha 1 transom washer transom plate and shift cable exploded parts drawing
  • GLM Marine number: 19320
  • OEM number: 12-35777
  • Ref No. 2 on our transom and shift cable drawing page
  • Washer for Alpha 1 drive years 1984 thru 1992
W 19320 Alpha 1 washer.jpg

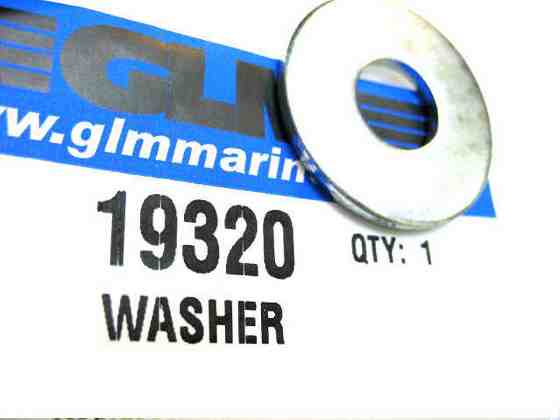

19320 Alpha 1 washer

# 19320  Transom washer (2 units) $4.29
