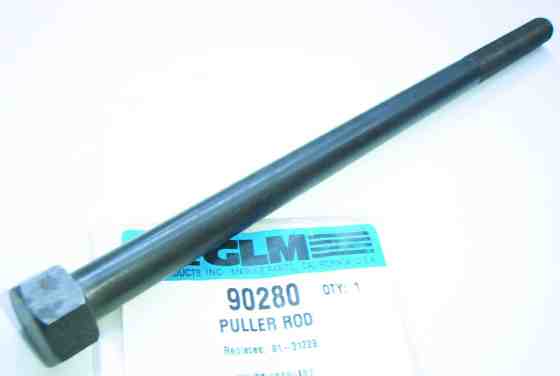

GLM Marine aftermarket parts puller rod for the Mercruiser Alpha 1 lower unit
  • OEM number: 91-31229
  • GLM Marine number: 90280
  • Puller rod
  • Used with #90260 pinion bearing installation tool and #90270 driver head to install and remove the pinion bearing
  • For more tools, see our repair tools page
W 90280 Alpha 1 puller rod.jpg
90280 Alpha 1 puller rod

  #90280 Puller rod $16.29
