GLM Marine aftermarket parts pinion bearing removal & installation tool assembly for Mercruiser Alpha 1 lower unit
  • OEM number: N/A
  • GLM Marine number: 90295

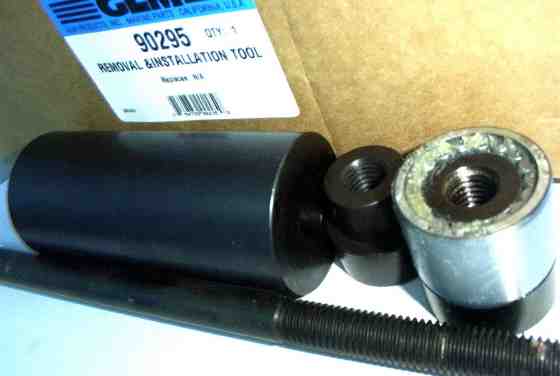

  • Pinion bearing removal and installation tool assembly
  • Removes and installs pinion bearings on MC-1, R, MR, Alpaha 1, Alpha 1 Gen 2 drive units
  • Kit includes: # 90260, 90270, 90280, 90290
  • For more tools, see our repair tools page
W 90295 Alpha 1 removal installation tool.jpg
90295 Alpha 1 removal installation tool

#90295 Pinion bearing removal & installation tool assembly $76.29
