GLM Marine aftermarket parts pinion nut adaptor kit for the Mercruiser Alpha 1 lower unit
  • OEM number: 91-61067A3
  • GLM number: 90210
  • Pinion nut adaptor kit For Mercruiser/Alpha 1/Alpha 1 Generation 2 lower unit
  • Holds the pinion nut when removing pinion gear and drive shaft on Mercruiser and all Alpha series drives
  • Kit includes #90220 drive shaft adaptor
  • See lower gearcase drawing page for more components and parts

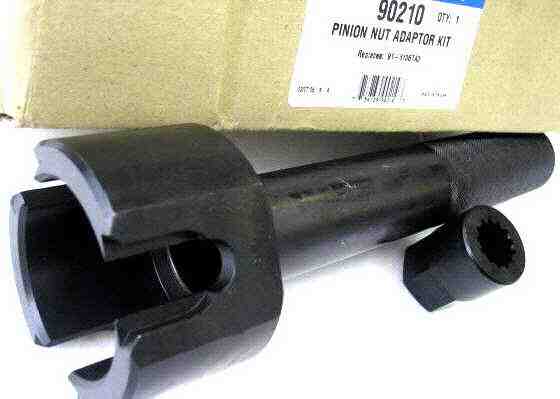

W 90210 Alpha 1 drive shaft pinion nut adaptor.jpg
90210 Alpha 1 drive shaft pinion nut adaptor

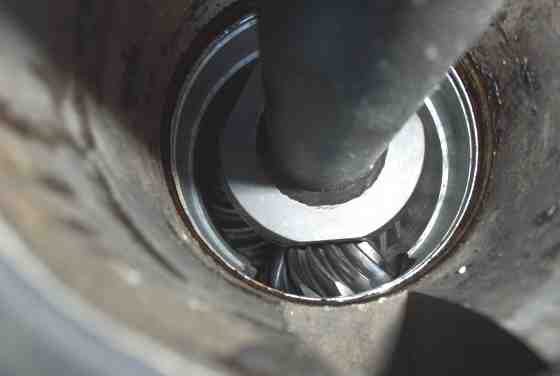

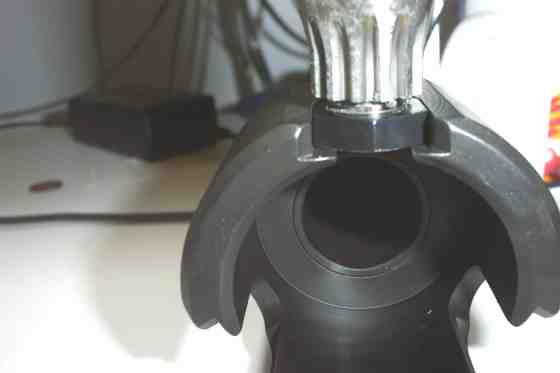

W 90210 Alpha 1 pinion nut holder.jpg
90210 Alpha 1 pinion nut holder
W 90210 pinion nut adaptor kit-2.jpg
90210 pinion nut adaptor kit

  # 90210 Pinion nut adaptor kit $152.29
