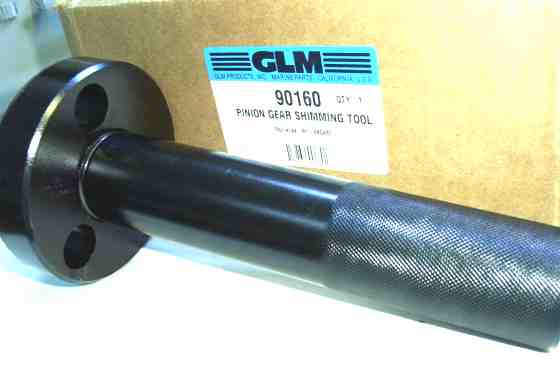

GLM aftermarket parts pinion gear shimming tool for the Mercruiser Alpha 1 lower gearcase
  • Mercruiser Alpha 1 tools OEM number: 91-56048T
  • GLM number: 90160
  • Pinion gear shimming tool for the MC-1/R/MR/Alpha 1/Alpha 1 Generation 2 stern drive
  • Measures the pinion height in the lower unit
  • See the lower gearcase drawing page for the pinion gear and other parts
90160 Alpha 1 pinion gear shimming tool

  # 90160 Pinion gear shimming tool $172.29
