GLM Marine aftermarket Alpha 1 nut transom plate and shift cable exploded parts drawing
  • GLM Marine number: 21162
  • OEM number: 11-49910
  • Ref No. 17 on our transom and shift cable drawing page
  • Alpha 1 nut for drive years 1984 thru 1992

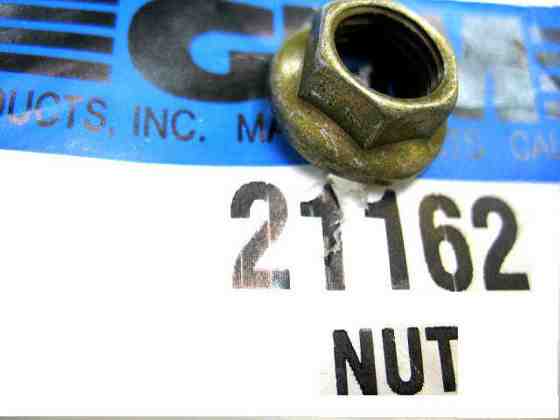

W 21162 Alpha 1 nut.jpg
21162 Alpha 1 nut

# 21162 Alpha 1 nut $4.29
