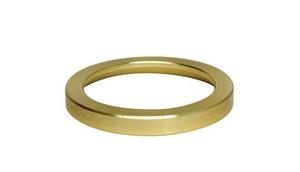

Mercruiser Alpha 1 motor mount transom plate spacer
  • GLM Marine number: 21050
  • OEM number: 99322
  • Ref No. 7 on our transom and shift cable drawing page
  • For Alpha 1 drive years 1984 thru 1992
  • Rear motor mount spacer

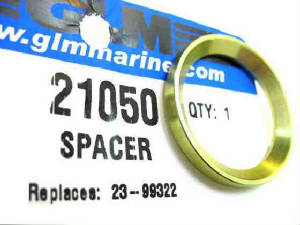

W 21050 Alpha 1 spacer.jpg
21050 Alpha 1 spacer

# 21050 Spacer $4.29
