GLM Marine aftermarket Alpha 1 motor mount kit for Mercruiser outdrive
  • Mercruiser outdrive rear Alpha 1 motor mount kit includes (2) mounts and (2) spacers
  • GLM Marine #21040
  • OEM #99297A1
  • Installed with transom mount bolt
  • Also compatible with models 1/R/MR  1970 and up

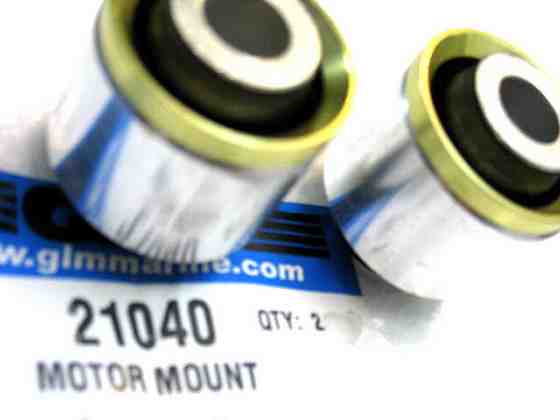

W 21040 Alpha 1 motor mount.jpg

# 21040 Motor mount (1 unit) $19.29
