GLM Marine aftermarket Alpha 1 locknut transom plate and shift cable exploded parts drawing
  • GLM Marine number: 19350
  • OEM number: 11-863332
  • Ref No. 6 on our transom and shift cable drawing page
  • Lock nut for Alpha 1 drive years 1984 thru 1992
W 19350 Alpha 1 nylon lock nut.jpg

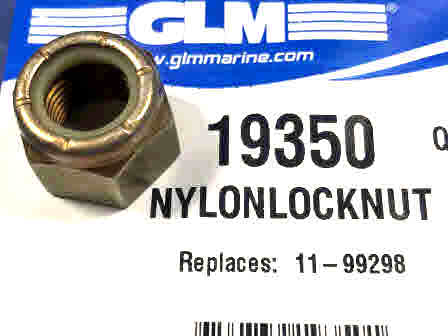

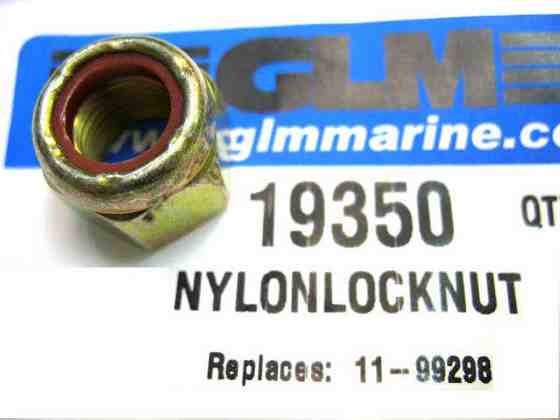

19350 Alpha 1 nylon lock nut

# 19350 Locknut $4.29
