Mercruiser Alpha One stern drive lock nut for upper gearcase
  • # 28360 Locknut
  • OEM # 11-22339
  • Lock nut for upper gearcase
  • If more service help is required, contact tech service for help troubleshooting your stern drive at (416) 751-7326
W 28360 Mercruiser pinion gear nut.jpg

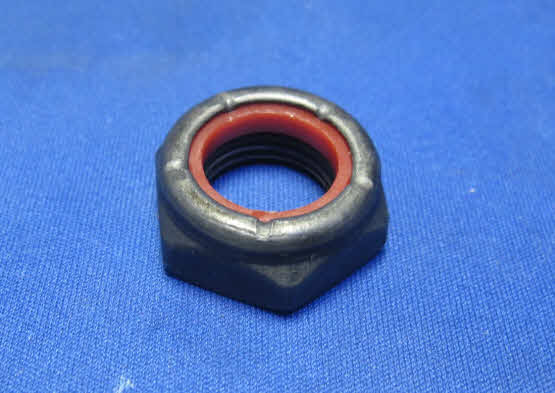

# 28360 Mercruiser Alpha 1 lock nut for drive gear

# 28360 Lock nut  OEM #11-22339 $4.98
