GLM Marine aftermarket parts Mercruiser outdrive Alpha 1 insert scree (starboard) for lower gearcase
  • OEM number 93423-1

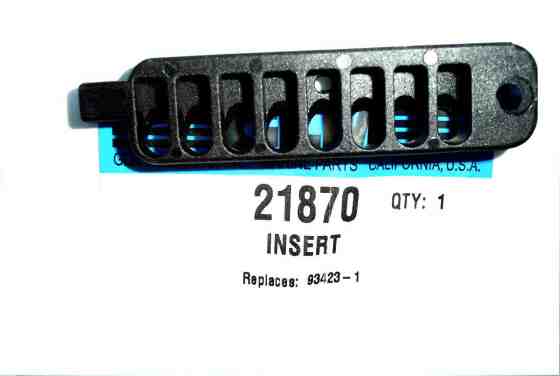

  • GLM Marine part number: 21870 Mercruiser plastic Alpha 1 outdrive screen insert stbd. side
  • For port side screen, see our port insert page
W 21870 Alpha 1 outdrive screen insert starboard.jpg
Alpha 1 outdrive screen insert starboard

# 21870 Insert (stbd) $4.89
