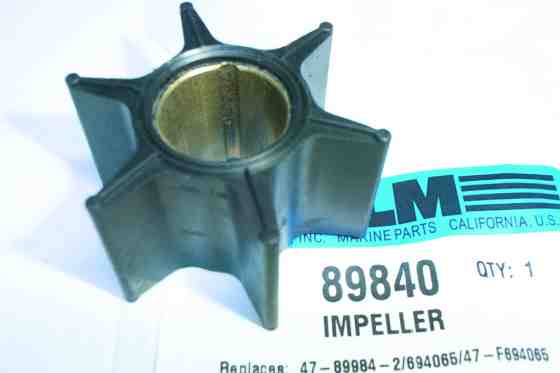

Glm Marine aftermarket Mercruiser Alpha One water pump impeller
  • Water pump impeller # 89840 use MR, or Alpha one OEM # 47-89984T4
  • Change every 2 to 3 years use grease when installing and turn drive shaft clockwise when pushing down on case at the same time.
  • If help is required, contact our service tech for advice troubleshooting your Mercruiser stern drive
  • Impeller is also included in the complete water pump kit
Aftermarket Mercruiser parts
W 89840 Alpha one or Mercruiser Impeller.jpg
89840 Alpha one, MR and Mercruiser Impeller

# 89840 Aftermarket Mercruiser impeller
OEM # 47-89974T4 $18.89
