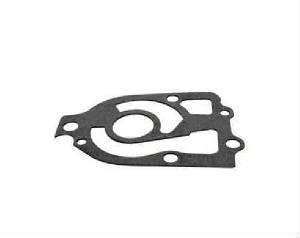

GLM aftermarket parts MerCruiser Alpha 1 lower gearcase gasket
  • Gasket is used in between the wear plate and the water pump base
  • OEM number: 27-85608-1
  • GLM Marine part number: 31010
  • Identified as part number 16 on the Alpha 1 lower gearcase parts and drawing page
W 31010 Alpha 1 pump to lower wear plate gasket.jpg
31010 Alpha 1 pump to lower wear plate gasket.

   31010 Gasket $4.89
