    Mercruiser Alpha One trim cylinders with hydraulic hose drawings
  • Mercruiesr Alpha 1 trim cylinders and hydraulic hoses with illustrated photos identified with matching order numbers
  • For hydraulic line hoses please call for availability
Mercruiser Trim Cylinders and Hoses 1983 to 1990

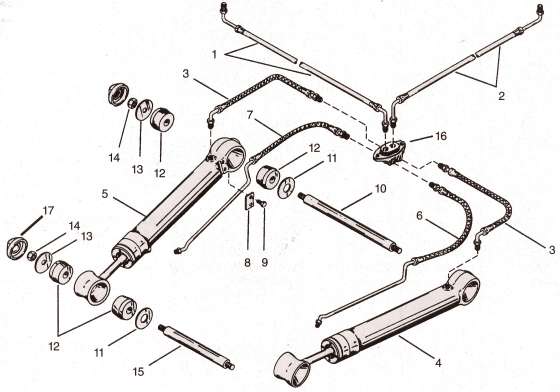

Mercruiser trim cylinder and hoses alpha one.jpg
Alpha One trim cylinders and hydraulic hoses 1983 to 1990

GLM Marine Aftermarket Mercruiser Parts

  •
    • 1 Trim hose #26170
    • 2 Hose #26180
    • 3 Hose #26210
    • 4 Trim cylinder Stbd. #26400
    • 5 Cylinder Port #26410
    • 4 Cylinder Stbd. #26500
    • 5 Cylinder Port #26510
    • 6 Hose #26250
    • 7 Hose #26200
    • 6 Hose #26190
    • 7 Hose #26240
    • 8 Plate #26390
    • 9 Screw #22306
    • Trim ram bushing kit #21370
    • 10 Front anchor pin #21410
    • 11 Washer #21660
    • 12 Bushing #26330
    • 13 Washer #21670
    • 14 Lock nut #21170
    • Trim ram bushing kit #21380
    • 15 Rear anchor pin #21400
    • 16 Trim connector kit #21970
    • 17 Cap #26480
