GLM Aftermarket stern drive forward gear shims for lower gearcase
  • Cost effective aftermarket Mercruiser outdrive lower seal kits and shims
  • Aftermarket Tools for Mercruiser stern drive repairs
  • If help is required, contact our service tech for advice troubleshooting your Mercruiser stern drive unit at
  • (416) 751-7326
Aftermarket mercruiser sterndrive shims
Forward shims # 23220

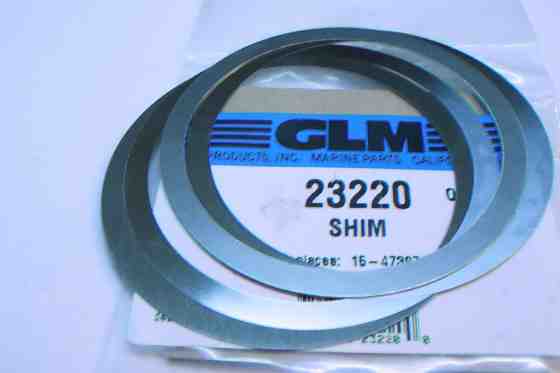

# 23220 Forward gear shims OEM # 15-47397A1 $6.79
