GLM Marine aftermarket Alpha 1 fibre washer transom plate and shift cable exploded parts drawing
  • GLM Marine number: 30020
  • OEM number: 12-32834
  • Ref No. 4 on our transom and shift cable drawing page
  • Fibre washer for Alpha 1 drive years 1984 thru 1992

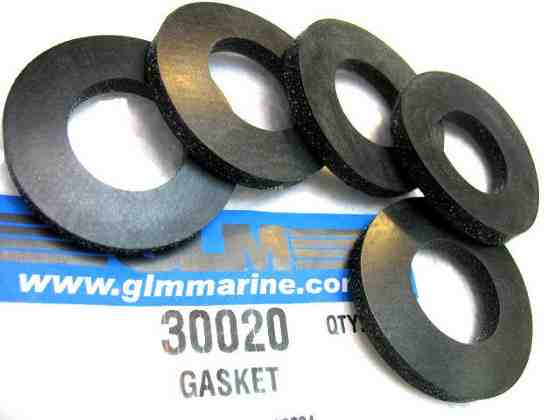

W 30020 Alpha 1 gasket.jpg
30020 Alpha 1 gasket

# 30020 Fibre washer (5 units) $9.29
