GLM Marine aftermarket parts MerCruiser Alpha 1 clip for outdrive lower gearcase
  • OEM number 18-20233
  • GLM Marine part number: 21132
  • Identified as part number 30 on Alpha 1 lower gearcase drawing page

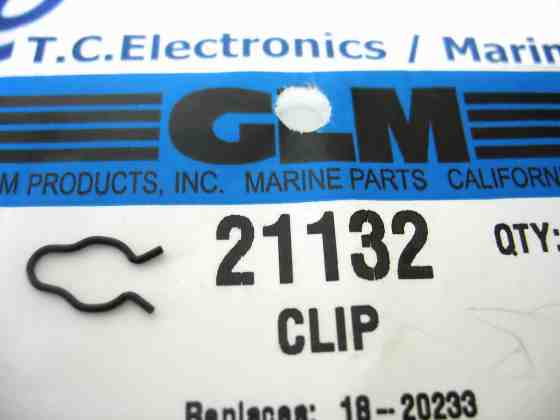

W 21132 Mercruiser Alpha 1 outdrive clip.jpg
21132 Mercruiser Alpha 1 outdrive clip

# 21132 Clip $4.89
