GLM Marine aftermarket parts bearing carrier retainer wrench tool for the Mercruiser Alpha 1 stern drives
  • OEM number: 91-61069T
  • GLM number: 90190
  • Bearing carrier retainer wrench
  • For MC-1/R/MR/Alpha 1/Alpha 1 Generation 2 drive units
  • Removes and installs bearing carrier retainer nuts
  • See lower gearcase drawing page for bearing carrier assembly
W 90190 Alpha One tool carrier retainer wrench.jpg

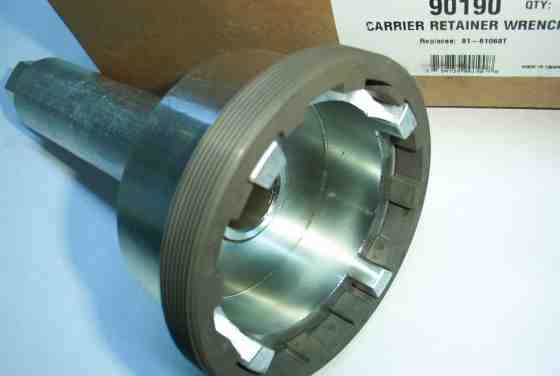

90190 Alpha One tool carrier retainer wrench

  # 90190 Bearing carrier retainer wrench $91.29
