Mercruiser Alpha 1 (One) lower unit gear housing assembly replacement from GLM Marine aftermarket Parts
  • New complete lower unit gear housing assembly replacement
  • Forward bearing size: O.D 3.500 (#21590)
  • Heavy duty construction replaces original MerCruiser and Alpha 1 (One) lower units
  • OEM # 1623-8951A43
  • GLM # 18100
  • Gear ratio: 13:21
  • See our Alpha 1 lower unit page for all lower gear case parts and components with photos

W mercruiser alpha 1 lower unit complete.jpg
mercruiser alpha 1 lower unit complete

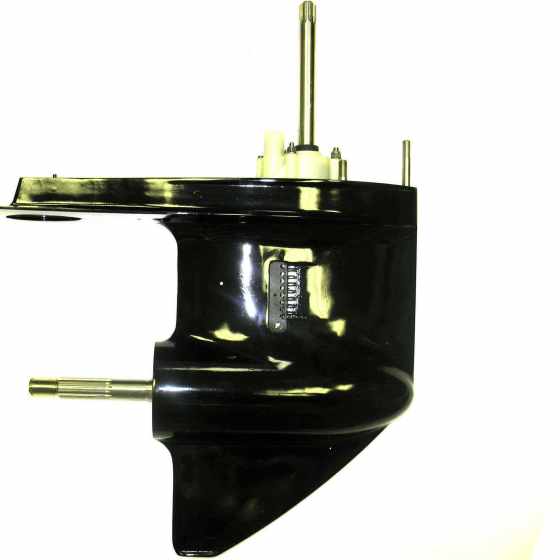

W alpha 1 lower gearcase assembly.jpg
alpha 1 lower gearcase assembly
L alpha 1 prop shaft lower.jpg
alpha 1 prop shaft lower

#18100 - MerCruiser Alpha 1 (One) lower unit gearcase assembly



$995.79 - Price applicable to pickup only



$1136.79 - Price includes packaging and delivery via Fed Ex ground service
