GLM marine aftermarket Alpha One Generation II trim cylinder replacement parts with exploded drawing
  • Alpha One generation II hydraulic power trim, tilt cylinders and parts
  • Trim cylinder illustrated componant photos identified by matching GLM Marine order and item numbers
  • Layout for Mercruiser marine boating enthusiasts and auto mechanics performing their own work on hydraulic power trim and tilt cylinders will find this layout extremely valuable
  • Exploded drawings that show internal parts and their relationship with hydraulic power trim, tilt cylinders located at bottom of page


Ref #
GLM #
Description
Add to cart
26520 aftermarket mercruiser cylinder starboard
26520 aftermarket mercruiser cylinder starboard
A
#26520
 Alpha one generation II trim cylinder starboard

$389.89

26530 aftermarket Alpha One Gen. II parts port
26530 aftermarket Alpha One Gen. II parts port
A2
#26530
Alpha one generation II trim cylinder (port)

$389.89


1 to 12
#26580
Overhaul kit for all alpha 1 Gen ll
OEM # 87399A3
1 Screw
2 Spring seat
3 Valve seat
4 Steel ball
5 Spring pin
6 Shock piston
7 Steel ball
8 Spacer
9 Compression spring
10 Spring
11 Eyelet
12 Floating piston

$153.89

87400 power trim seal kit
87400 power trim seal kit

13

 to

 20
#87400

Seal kit
OEM # 25-87400A2
13 O-ring
14 O-ring
15 Continuity ring
16 O-ring
17 Rod scraper
18 Washer
19 Retainer ring
20 O-ring

  $16.29


21A
#26521
Trim cylinder (shell) starboard for all Alpha 1 Gen ll
OEM# 815954T

$310.89


21B
#26531
Trim cylinder (shell) port for all Alpha 1 Gen ll
OEM# 815935T

  $310.89

11610 Alpha one generation II
11610 Alpha one generation II end cap 1.890" O.D.
22A
#11610
End cap (1.890" OD) Alpha 1 / Gen.II / Bravo
OEM# 806191T

$60.09

Print

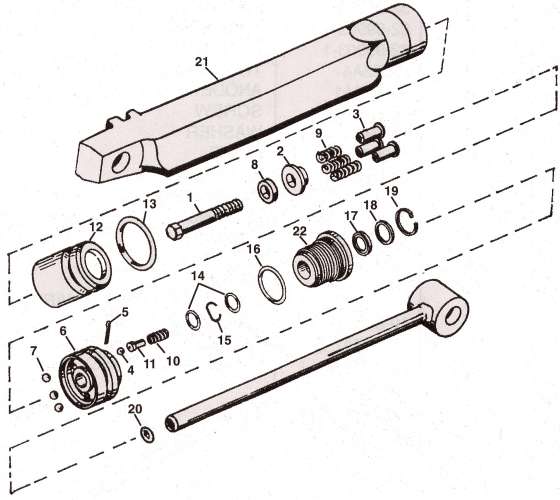

Alpha One trim cylinder parts layout

Note #1 to #20
Not sold separately
3 Valve seat
4 Steel ball
5 Spring pin
6 Shock piston
7 Steel ball
8 Spacer
9 Compression spring
10 Spring
11 Eyelet
12 Floating piston
13 O-ring
14 O-ring
15 Continuity ring
16 O-ring
17 Rod scraper
18 Washer
19 Retainer ring
20 O-ring
21 Cylinder shell stbd.
21 Cylinder shell port
22 End cap 1.89"O.D.
Alpha One generation II drawing
Mercruiser parts for alpha one generation II
Aftermarket Mercruiser parts for Alpha One generation II
