GLM marine aftermarket Alpha One Generation 2 gears for upper gearcase
  • Mercruiser Alpha One Generation 2 illustrated upper gear photos, identified with matching order numbers
  • See our upper gearcase technical breakdown page for all other parts and components
  • For technical questions regarding gears for your Alpha One Gen 2, contact our tech line at (416) 751-7326

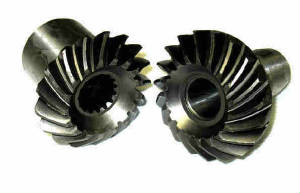

17/19 Ratio 1.84
Upper gear set 1970 thru 1997 V-6 and 470 / 485 OEM# 43-75325A3 #11230

1.84/1.81 ratio gears
#11230 $233.79
OEM# 43-75325A3

24/24 Ratio 1.65
T.C. #11220 Upper gear set 1970 thru 1997 24/24 Six Cylinder In Line OEM# 43-45814A5

1.65/1.62 ratio gears
#11220 $240.79
OEM# 43-45814A5

20 - 22 Ratio 1.5
11210 Mercruiser gears V8 22-20 gear ratio.jpg
Upper gear set V 8 20 - 22 Ratio 1.5 1970 thru 1997 Alpha One and Gen II #11210

1.50/1.47 ratio gears
#11210 $272.79
OEM# 43-18411A2

20/24 Ratio 1.98
# 11240 Upper gear set 1970 thru 1997 20/24 4 Cylinder OEM# 43-55778A3

1.98/1.94 ratio gears
#11240 $222.79
OEM# 43-55778A3

Mercruiser Alpha 1 generation 2 outdrive help

Tech help required, contact our service technition for advice trouble shooting your Alpha 1 generation 2 stern drive unit at (416) 751-7326
